MKL-5000 Tube Microphone

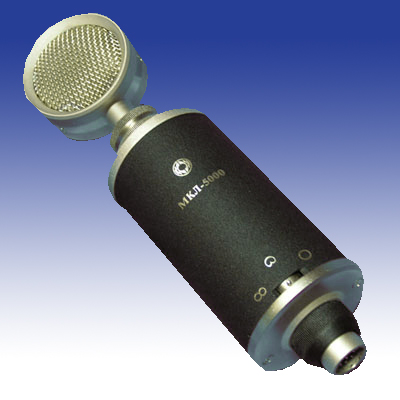

A bottle style tube multi-pattern large diaphragm studio microphone, the MKL5000 is the hi-end addition to the range of high quality condenser mics from the Oktava factory. Utilising a 6C15P tube in the discreet preamplifier circuitry creates just the right amount of third harmonic content, adding a subtle warmth but maintaining the clarity of the newly designed 1 inch 5 micron thick gold sputtered dual diaphragms.

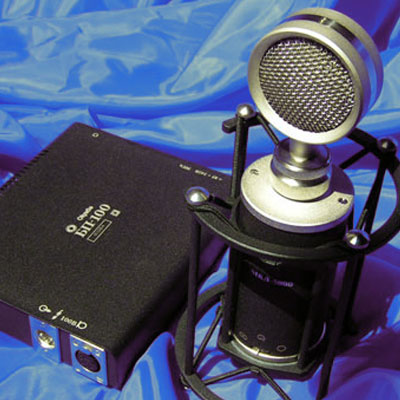

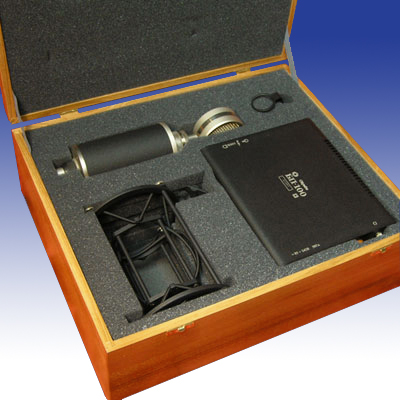

Designed to work with numerous sound sources to maximum effect, the MKL5000 excels on vocals, grand pianos, guitars and percussion amongst many other sources, and gives presence and warmth to lead parts in the mix. The tube is powered by a british designed and built class 'A' power supply and the mic comes with a highly effective shockmount.



Fequency Response & Technical Specifications

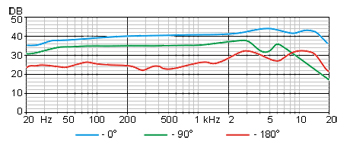

Cardioid
Polar Pattern Cardoid / Omni-directional / Figure-of-eight
Freq. Response, Hz 20-20000
Output sensitivity, mV/Pa 13
Power Power Block supplied
Nominal Output Impedance 200ohm
Minimum load impedance

1 k ohm

Maximum SPL @ 1kHz > 135dB
Maximum Output Voltage 1.2V
Current Consumption 8mA
Temp. Range -35degrees C to +45 degrees C
Relative Humidity 85% (+25 degrees C)

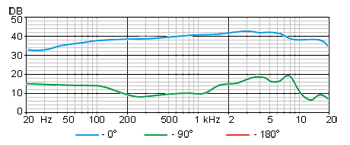

Figure of Eight

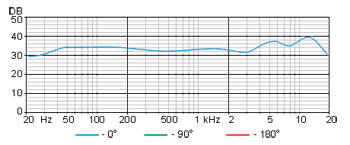

Omni-directional
