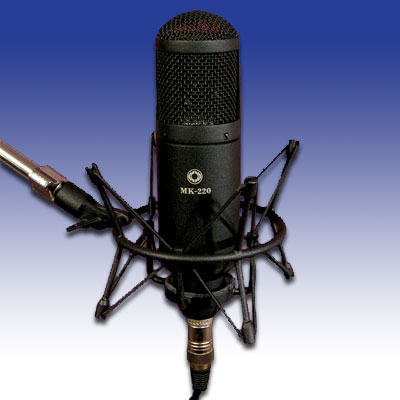

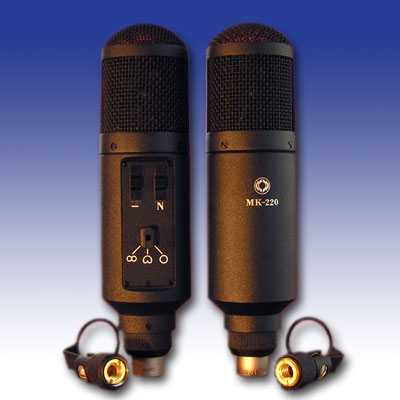

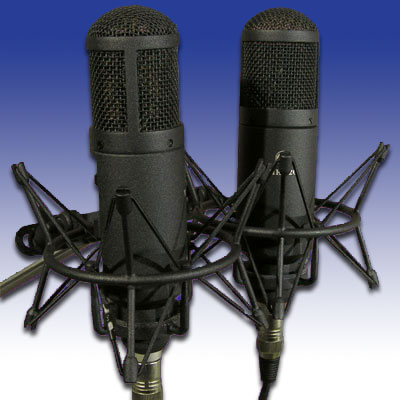

MK-220 Large Diaphragm Microphone |
 |
|
 |
|
|
Oktava's first twin diaphragm, multi-pattern microphone developed from the industry-workhorse Oktava MK-319. This spectacular new microphone offers all the richness of the special, warm, up front sound with which the 319 has graced vocal takes all over the world for years
|
 |
 |
 |
In addition to the added ambience-capturing omni directional capability, the figure 8 capability - offering balanced pick-up from both sides of the microphone - is perfect to use for more sophisticated stereo miking techniques such as Blumlein and Mid-Side and provides a genuine low-cost/high quality flexibility to your microphone closet. |
| |
Fequency Response & Technical Specifications
|

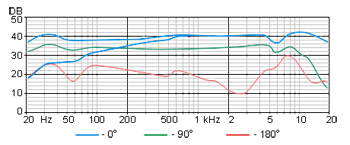

 Cardioid |
| Mic type |
Large diaphragm condenser |
| Polar Pattern |
Cardioid, omni, fig-of-eight |
| Freq. Response, Hz |
20-18000 |
| Output sensitivity, mV/Pa |
10 |
| Max SPL, dB for 0,5% THD |
140 |
| Self Noise (DIN), dBa |
<14 |
| Output impedance, ohm |
200 |
| Phase |
Positive |
| Powering, V |
48 |
| Supply current, mA |
8 |
| Switches |
-10dB / High-Pass Filter |
| Weight, g |
620 |
| Length, mm |
205 |
| Max diameter/width, mm |
52 |
| Temp. Range |
-35degrees C to +45 degrees C |
| Relative Humidity |
85% (+25 degrees C) |
| Accessories included |
Mic holder |
|

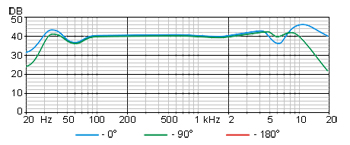

 Omnidirectional |

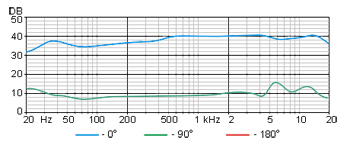

Figure of eight |
|
|
