The MK-012-01 is a compact, high quality capacitor microphone. The wide, flat response ensures that all sounds are captured with a high degree of accuracy.
The MK-012-01 is suitable for use in any situation where an accurate sound is required, the size of the system makes it ideal for use in broadcast, sound for picture, installation, sound reinforcement and theatre situations as well as the recording studio.

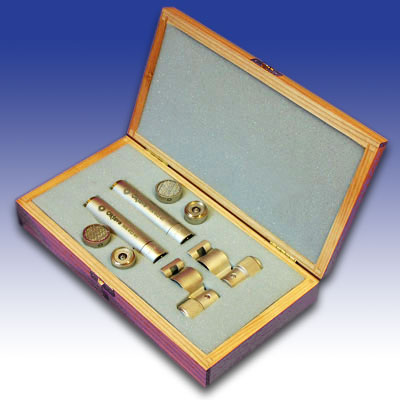

MK-012-01 MSP2 Silver
Fequency Response & Technical Specifications
Cardioid
Mic type
Small
diaphragm condenser
Polar Pattern
Cardioid, Onmi, Hypercardioid
Freq. Response
20-20000Hz
Phantom voltage required
48 +\- 2V
Full impedance, module
less than 300
ohms
Weighted SPL (ref. DIN 45412)
18 dBA
Maximum SPL in 250-8000Hz range, (less than
0.5% THD)
130 db
Free field sensitivity at 1KHz
10 mV/Pa
Free field sensitivity roll off from 40Hz
to 20KHz
should not exceed
+\- 3 db
Weight
70 gr
Length, mm
128
Max diameter/width, mm
23
Accessories included
Mic holder
The
difference in free field sensitivity between 0° and 90°
should be as follows:
For cardioid capsule:
in 250-8000 Hz range:
no less than
4 db
Average sensitivity difference between O°
and 180° for cardioid capsule in 63-12500 Hz range:
